Kubota Parts
Why Choose Genuine Kubota Parts?
- To ensure consistent performance from your Kubota engine
- The same parts used in our factory
- Manufactured to Kubota standards
- Protected by a one-year warranty
Products:

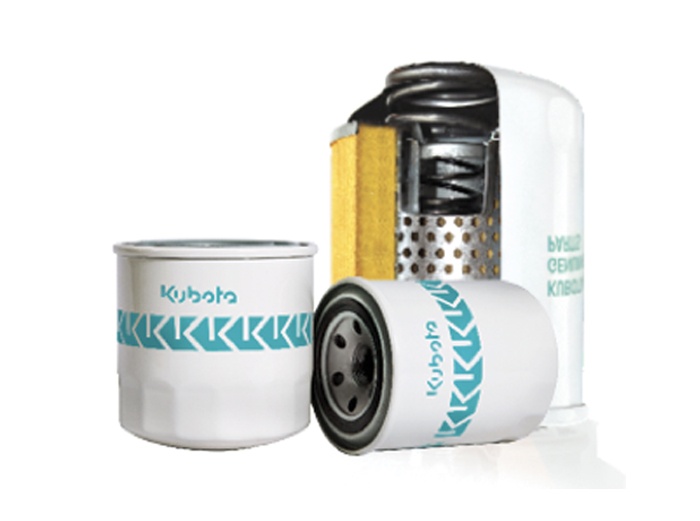

Kubota Oil Filters
You count on Kubota industrial engines to deliver high performance in severe working conditions. Protect it with genuine Kubota filters.
- Highest level of protection for today’s high tech fuel systems
- Internal corrosion protection
- Larger filtration area
- Robust construction
- Designed specifically for your Kubota engine
- Well protected and ready for the job

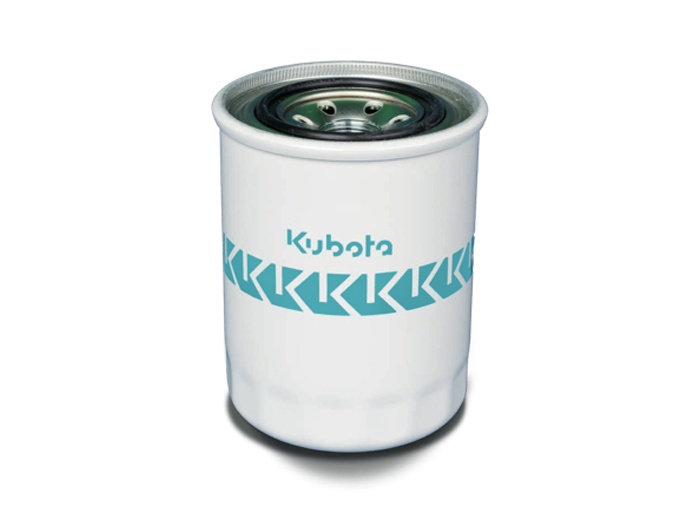

Kubota Fuel Filters
Genuine Kubota filters have an anti-corrosion coating to resist the effects of moisture in your fuel system. In testing, Kubota filters resisted corrosion while another popular brand of replacement fuel filter rusted after only a short exposure to moisture.
Kubota’s filter removes the smallest particles, while other brands leave plenty of room for contaminants to pass through.
Not only is the filter media more dense, there is up to 31 square inches more filtration area than the closest competitor. Increased filtration area helps collect more contaminants to ensure cleaner fuel.

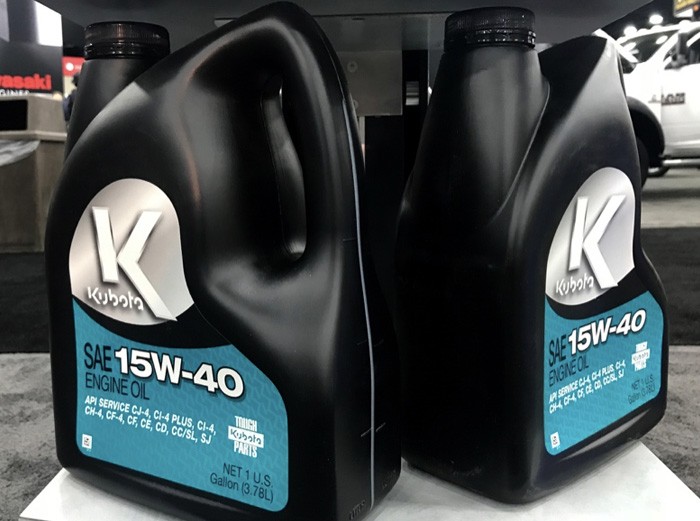

Genuine Kubota Oil
Genuine Kubota oil is specifically designed for Kubota industrial engines to maximize the life of your engine by lubricating, cooling and cleaning all at once.
Excellent heat resistance and stability
Even in harsh conditions and under heavy loads for long hours, high-temperature degradation is minimized and proper viscosity is maintained.
Outstanding cleansing and dispersion properties
Cleans off engine-polluting soot and absorbs the particles for fine dispersion.
- Manufacturer Quality Assurance
- Defined Oil Change Schedule*
*Because the oil is designed to conform to Kubota’s strict quality standards, the oil will perform throughout Kubota’s full oil change interval.

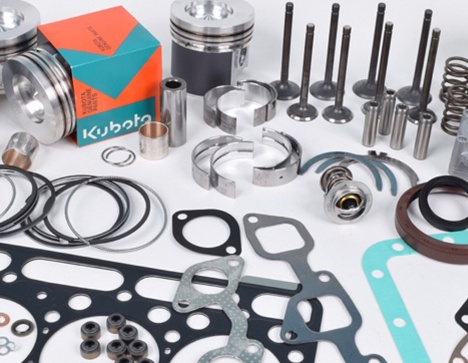

Kubota Engine Overhaul Kits
Everything you need for an overhaul of your Kubota engine.
Don’t overhaul your engine with will-fit substitute parts. Kubota engine overhaul kits provide guaranteed quality with 100% Kubota genuine parts. You’ll have peace of mind that your overhaul delivers the reliable performance you’ve come to expect from your trusted Kubota engine.
Kit includes:
- Piston kits
- Bearing kit
- Upper and lower gasket sets
- Valvetrain
- Oil pump
- Oil filter
- Thermostat
Overhaul kits offer savings over parts purchased separately.
Application Information
Kit Part Number |
Kit Description |
Application |
Serial Number |
|---|---|---|---|
| KEAOK-10005 | Std Metals, Std Pistons | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-11005 | OS Metals 0.20mm, Std Pistons | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-10205 | Std Metals, OS Pistons 0.5mm | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-11205 | OS Metals 0.20mm, OS Pistons 0.5mm | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-10006 | Std Metals, Std Pistons | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11006 | OS Metals 0.20mm, Std Pistons | V2003M-E2B | V2003M-E2B |
| KEAOK-10206 | Std Metals, OS Pistons 0.5mm | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11206 | OS Metals 0.20mm, OS Pistons 0.5mm | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10007 | KEAOK-10007 | V2003M-E3B | 9Q0001~ |
| KEAOK-10207 | Std Metals, OS Pistons 0.25mm | V2003M-E3B | 9Q0001~ |
| KEAOK-11207 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003M-E2B | 9Q0001~ |
| KEAOK-10008 | Std Metals, Std Pistons | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11008 | OS Metals 0.20mm, Std Pistons | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10208 | Std Metals, OS Pistons 0.25mm | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11208 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10009 | Std Metals, Std Pistons | V2003MT-E3B | 9U0001~ |
| KEAOK-11009 | OS Metals 0.20mm, Std Pistons | V2003MT-E3B | 9U0001~ |
| KEAOK-10209 | Std Metals, OS Pistons 0.25mm | V2003MT-E3B | 9U0001~ |
| KEAOK-11209 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003MT-E3B | 9U0001~ |
| KEAOK-10005 | Std Metals, Std Pistons | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-11005 | OS Metals 0.20mm, Std Pistons | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-10205 | Std Metals, OS Pistons 0.5mm | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-11205 | OS Metals 0.20mm, OS Pistons 0.5mm | V1505 NA V1505-E3B | 4E9456~ MTL HDSKT |
| KEAOK-10006 | Std Metals, Std Pistons | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11006 | OS Metals 0.20mm, Std Pistons | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10206 | Std Metals, OS Pistons 0.5mm | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11206 | OS Metals 0.20mm, OS Pistons 0.5mm | V2003M-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10007 | Std Metals, Std Pistons | V2003M-E3B | 9Q0001~ |
| KEAOK-11007 | OS Metals 0.20mm, Std Pistons | V2003M-E3B | 9Q0001~ |
| KEAOK-10207 | Std Metals, OS Pistons 0.25mm | V2003M-E3B | 9Q0001~ |
| KEAOK-11207 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003M-E3B | 9Q0001~ |
| KEAOK-10008 | Std Metals, Std Pistons | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11008 | OS Metals 0.20mm, Std Pistons | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10208 | Std Metals, OS Pistons 0.25mm | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-11208 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003MT-E2B | 4A0001~ ~9PZ999 |
| KEAOK-10009 | Std Metals, Std Pistons | V2003MT-E3B | 9U0001~ |
| KEAOK-11009 | OS Metals 0.20mm, Std Pistons | V2003MT-E3B | 9U0001~ |
| KEAOK-10209 | Std Metals, OS Pistons 0.25mm | V2003MT-E3B | 9U0001~ |
| KEAOK-11209 | OS Metals 0.20mm, OS Pistons 0.25mm | V2003MT-E3B | 9U0001~ |
| KEAOK-10010 | Std Metals, Std Pistons | V2203 Except BG | No Serial Number Break |
| KEAOK-11010 | OS Metals 0.20mm, Std Pistons | V2203 Except BG | No Serial Number Break |
| KEAOK-10210 | Std Metals, OS Pistons 0.5mm | V2203 Except BG | No Serial Number Break |
| KEAOK-11210 | OS Metals 0.20mm, OS Pistons 0.5mm | V2203 Except BG | No Serial Number Break |
| KEAOK-10011 | Std Metals, Std Pistons | V2203 DI | ~3Z1999 |
| KEAOK-11011 | OS Metals 0.20mm, Std Pistons | V2203 DI | ~3Z1999 |
| KEAOK-10211 | Std Metals, OS Pistons 0.5mm | V2203 DI | ~3Z1999 |
| KEAOK-11211 | OS Metals 0.20mm, OS Pistons 0.5mm | V2203 DI | ~3Z1999 |
| KEAOK-10012 | Std Metals, Std Pistons | V2203-E2B | 4A0001~ |
| KEAOK-11012 | OS Metals 0.20mm, Std Pistons | V2203-E2B | 4A0001~ |
| KEAOK-10212 | Std Metals, OS Pistons 0.5mm | V2203-E2B | 4A0001~ |
| KEAOK-11212 | OS Metals 0.20mm, OS Pistons 0.5mm | V2203-E2B | 4A0001~ |
| KEAOK-10013 | Std Metals, Std Pistons | V2203M-E2B | 4A0001~ |
| KEAOK-11013 | OS Metals 0.20mm, Std Pistons | V2203M-E2B | 4A0001~ |
| KEAOK-10213 | Std Metals, OS Pistons 0.25mm | V2203M-E2B | 4A0001~ |
| KEAOK-11213 | OS Metals 0.20mm, OS Pistons 0.25mm | V2203M-E2B | 4A0001~ |
| KEAOK-10014 | Std Metals, Std Pistons | V2203M-E2B | 4A0001~ |
| KEAOK-11014 | OS Metals 0.20mm, Std Pistons | V2203M-E2B | 4A0001~ |
| KEAOK-10214 | Std Metals, OS Pistons 0.25mm | V2203M-E2B | 4A0001~ |
| KEAOK-11214 | OS Metals 0.20mm, OS Pistons 0.25mm | V2203M-E2B | 4A0001~ |

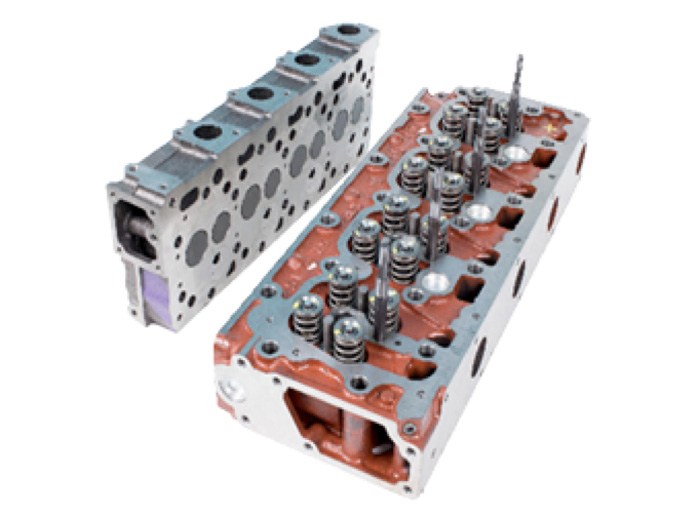

Kubota Cylinder Head Kits
Cylinder head kits – complete with valves – ready to install.
Made exclusively for Kubota industrial engines, genuine Kubota cylinder head kits are competitively priced and quality guaranteed. These cylinder head kits minimize your downtime so you can keep your engine’s productivity high.
- Ready to Install, Assembled with Valves
- 100% Kubota Genuine Parts
- 1-Year Parts Warranty
- Carefully Packed in Durable, Sturdy Box Packaging
Kubota Cylinder Head Kits
Kit Part Number |
Bare Cylinder Head |
Engine Application* |
|---|---|---|
| KEACK-1E387 | 1E387-03040 | D722E2B |
| KEACK-1J092 | 1J092-03040 | D722E3/E4 |
| KEACK-1J025 | 1J025-03040 | D902-E4B |
| KEACK-1G962 | 1G962-03046 | D902-E3B |
| KEACK-H1G90 | H1G90-03040 | D902-E2B |
| KEACK-1G043 | 1G043-03043 | D1005-E2B/E3B/E4B |
| KEACK-16030 | 16030-03044 | D1105-EB |
| KEACK-1G065 | 1G065-03044 | D1105-E3BG |
| KEACK-1J096 | 1J096-03040 | D1105-E4B |
| KEACK-1G900 | 1G900-03042 | D1305-B/3B/E4B |
| EACK-1G092 | 1G092-03044 | V1505-E3BG |
| KEACK-1G871 | 1G871-03040 | V1505-E3B |
| KEACK-1G093 | 1G092-03044 | V1505-T-E2B |
| KEACK-1G679 | 1G679-03040 | V1505-T-E3B |
| KEACK-1G711 | 1G711-03040 | D1703-M-E3B |
| KEACK-1E013 | 1E013-03045 | V2003-T-E2B |
| KEACK-1G624 | 1G624-03042 | V2003-M-E3B |
| KEACK-1G780 | 1G780-03043 | V2203-M-E2B |
| KEACK-19077 | 19077-03050 | V2203-EBG |
| KEACK-1G916 | 1G916-03040 | V2203-E2B V2203-M-E3B V2403-M-E3B |
| KEACK-1G851 | 1G851-03043 | V2403-M-E2B/E3B |
| KEACK-1J854 | 1J854-03040 | V2403-M-T-E3B |
